Description

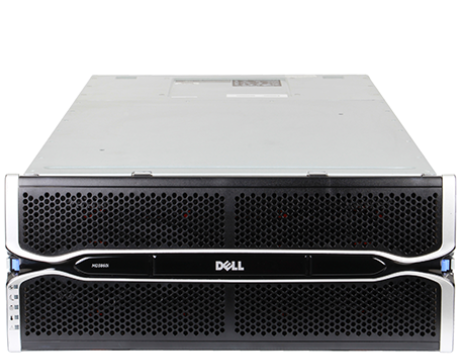

Dell PowerVault MD3860i Storage Array
Specifications
Number of drives/form factor
- 60/4U
Drive types
- SAS, NL-SAS and SSD drives
3.5″ drive options
- 15K RPM SAS: 300GB and 600GB
- 7.2K RPM NL-SAS: 500GB, 1TB, 2TB, 3TB, and 4TB
- SSDs: 200GB and 400GB; read-intensive SSDs: 800GB and 1.6TB (available with 3.5″ HDD carriers)
2.5″ drive options
- 15K RPM SAS: 146GB and 300GB
- 10K RPM SAS: 300GB, 600GB, 900GB and 1.2TB
- 7.2K RPM NL-SAS: 500GB and 1TB
- SSDs: 200GB and 400GB; read-intensive SSDs: 800GB and 1.6TB
RAID levels
-
- Support for RAID levels 0, 1, 10, 5, 6
-
- Up to 180/192 physical disks per group in RAID 0, 1, 10
-
- Up to 30 physical disks per group in RAID 5, 6
-
- Up to 512 virtual disks
Dynamic Disk Pools
- DDP available on all models, can be used with or without RAID
OS support
- Microsoft® Windows®
- VMware®
- Microsoft Hyper-V®
- Citrix® XenServer®
- Red Hat®
- SUSE®
Physical dimensions
- Height x width x depth
- 17.78cm (7.0″) x 48.26cm (19.0″) x 82.55cm (32.5″)
Maximum weight
-
- 105.24kg (232 lb)
Rails
- Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
