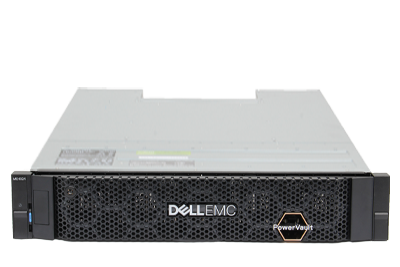

Dell PowerVault ME4024 Storage Array

$16,999.00

Designed for small to medium sized businesses, the Dell PowerVault ME4024 storage array offers a modular storage system that can scale to up to 4 Petabytes of storage. This is an entry-level system perfect for storage area networks (SAN) or direct attached storage (DAS). This is a 2U system perfect for virtual desktop infrastructure (VDI), backup, Exchange, accelerated performance for HPC and other applications.

Get a quote for a customized Dell PowerVault ME4024 storage array»

1 in stock

Categories: ,

Description

Dell PowerVault ME4024 Storage Array

Specifications

Chassis Overview
    • Rack Size
    • 2U or 5U



    • Power/Wattage
    • 580W/100-240 VAC



    • Controllers
    • 2 hot-swappable per chassis (dual active)
    • Single/dual controller support for 2U
    • Dual controller support for 5U



    • Processor
    • Intel Processor 2 cores 2.2GHz



    • Internal Storage
    • 24 x 2.5” drive bays



    • System Memory
  • 8GB per controller
Expansion Capacity
    • Expansion Enclosures
    • ME412: 12 x 3.5” drive bays (12Gb SAS)
    • ME424: 24 x 2.5” drive bays (12Gb SAS)
    • ME484: 84 x 3.5” drive bays (12Gb SAS)



    • JBOD
    • MD 1400: High density
    • MD 1420: Performance-optimized
    • ME484: Performance & density-optimized



    • Min/Max Drive Count
    • 2/276



    • Max Raw Capacity
    • 3PB (with ME484 expansion)



    • NAS Support
    • Supported with NX Series Windows NAS appliance



    • Storage Media
    SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system:

  • NLSAS 7.2K 3.5” – 4TB, 8TB, 12TB, 12TB SED, 16TB
  • NLSAS 7.2K 2.5” – 2TB, 2TB SED
  • SAS 10K 2.5” – 1.2TB, 1.8TB, 2.4TB, 2.4TB SED
  • SAS 15K 2.5” – 900GB, 900GB SED
  • SAS SSD – 480GB, 960GB, 1.92TB, 1.92TB SED, 3.84TB
  • SDD and HDD: FIPS-certified SEDs
Network and Expansion I/O
    • Host Interface
    • FC, iSCSI, SAS (supports simultaneous multiprotocol FC/iSCSI)



    • Max 16Gb FC Ports
    • 8 per array (support auto-negotiate to 8Gb)



    • Max 10Gb iSCSI Ports
    • 8 SFP+ or BaseT ports per array (BaseT only support auto negotiate to 1Gb)



    • Max 12Gb SAS Ports
    • 8 12Gb SAS ports



    • Max Multi-Protocol Ports
    • 4 ports 16Gb FC SFP+
    • 4 ports 10Gb iSCSI SFP+



    • Max Management Ports
    • 2 per array (1Gb BASE-T)



    • Disk Expansion Protocol
  • 12Gb SAS
Functional
    • Array Configurations
    • All-flash, hybrid or all HDD arrays



    • Storage Format
  • Native SAN or DAS
Data Optimization
    • Auto-tiering
    • Up to 3 primary (media-based) tiers



    • RAID Support
  • RAID 0, 1, 5, 6, 10, 50 or Adapt; any combination of RAID levels can exist in single array
Management
    • Management
    • PowerVault Manager HTML5 GUI, CLI, REST, OME 3.2



    • VMware vCenter
    • Support VMware vCenter 6.7 plugin to manage the ME4 arrays through vCenter.



    • Scripting
    • CLI
    • Microsoft PowerShell API
    • RESTful API



    • Supported Host OS
    • Windows 2019, 2016 and 2012 R2
    • RHEL 8.0, 7.4 and 6.9
    • SLES 12.3
    • VMware 6.7 U2, 6.5 and 6.0



    • Virtualization Integration
  • VMware vSphere (ESXi)
  • vCenter; SRM 8.1.x
  • Microsoft Hyper-V
  • XenDesktop 7.1
Dimensions
    • Depth: 60.29 cm (23.74 inches)
    • Height: 8.79 cm (3.46 inches)
    • Width: 48.30 cm (19.01 inches)
    • Weight (empty): 4.80 kg (10.56 lbs) without drives
    • Weight (maximum configuration): 30.00 kg (66.00 lbs)



Additional information

Dimensions 60.29 × 48.30 × 8.79 cm
